‘TopDM is the best Dental Implant I’ve ever used’ *

---

FIVE COMPELLING REASONS FOR TOPDM

A Simple Surgical Kit.
One connection platform and a simple 3-4 drill system make insertion easy and simplify set-up and post-operative recycling.
Quick and Easy to Place.
The thread pattern and implant profile allow quick and easy placement even in hard bone.
Excellent Primary Stability.
TopDm cutting thread and drilling protocol combine to deliver high primary stability.
Bone Stimulating.
Patented etch-only surface proven over 18 years to deliver contaminant-free healing and tissue response,

Excellent long-term results.
Higher loads and fewer screw breakages than grade 3 or 4 titanium and unique surface deliver excellent long-term results.

---

MORE DETAIL ON TopDM

The innovative design incorporates a unique surface technology and high-performance material designed for easy and predictable results you can trust. Key features are high primary stability, quick integration, and excellent long-term bone levels.

-High primary stability in low bone quality and immediate placement

·         Dual-pitched thread and neutral apex build up torque safely – ideal for immediate sites.

·         Expanding cone-shaped core progressively favours low bone quality.

-Bone Stimulating contaminant-free Bioetch surface

·         Unique, patented contaminant-free Bioetch surface (see article below).

·         Excellent healing, bone maintenance and tissue response.

-Easy to place and restore with excellent aesthetics

·         Fewer drills for efficient placement, less confusion and a seamless final workflow.

·         One unified platform across the complete range.

·         Short DM Option in heights 4mm, 5mm and 6mm for the atrophic maxilla.

-Great service and attractive price options

·         Independent, knowledgeable local supplier with next-day delivery, free swap and flexible service levels.

·         Our trust agreement lets you access discounts without upfront bulk orders making Top DM available from around £90.

Material

Grade 23 (Ti 6AL-4V ELI)* titanium alloy – the ultimate dental and medical titanium delivering:

• High strength with Lightweight.

• Excellent Corrosion Resistance.

*Use of Grade 23 Titanium Alloy in Dental Implants reduces the potential for fractures – especially around the implant collar whilst allowing narrower diameter implants with uniform internal connections for simplified restoration.

Bioetch surface

• Patented and exclusive double acid etching creates a roughness of 1.3 microns favouring bone deposition.

• Eliminates sandblasting* contamination altogether.

• Success since 2006.

*Typically sandblasting is used to create the optimal rough surface which creates a titanium oxide layer shown to leave remnants that slow healing and even cause failures. Cleaning after sandblasting reduces but cannot completely remove contaminants.

Thread Design

• Bone Engaging Apex.

• Double Pitch Thread for high torque and excellent primary stability even in poor sites.

• Expanding cone-shaped core of increasing diameter for the greatest bone-to-implant (BIC) contact.

*For immediate or early loading cases the balance of implant thread design shifts towards increased mechanical stability.

Connection

• Conical, indexed connection.

*Reduced bacterial entry and a tighter fit for infra-bony placement

Protocol

• Sub crestal placement with drill stop included as standard.

• Reduced drills and minimised surgical protocol.

• Single prosthetic platform – restorative simplicity and financial efficiency.

---

Long Term Success

                                                                    BIONER_Characterization of a Macro- and Micro-Textured Titanium Grade 5 Alloy Surface Obtained by Etching Only without Sandblasting

   Top DM Brochure        Top DM Digital           Bioetch Surface

—–BIONER HISTORY—–

Since its founding in 1992, Bioner’s activities have been geared toward the local Spanish market. In recent years Bioner began an international expansion without compromising the values that have driven its growth: accuracy and quality of its products, collaboration with professionals and first-level technical support.

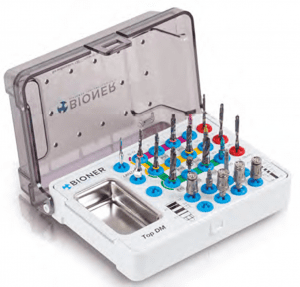

Top DM Surgical Kit



*Oral Surgeon and Leading International Expert Dr Minas Leventis.
**Image care of Dr David Morales Schwartz.
